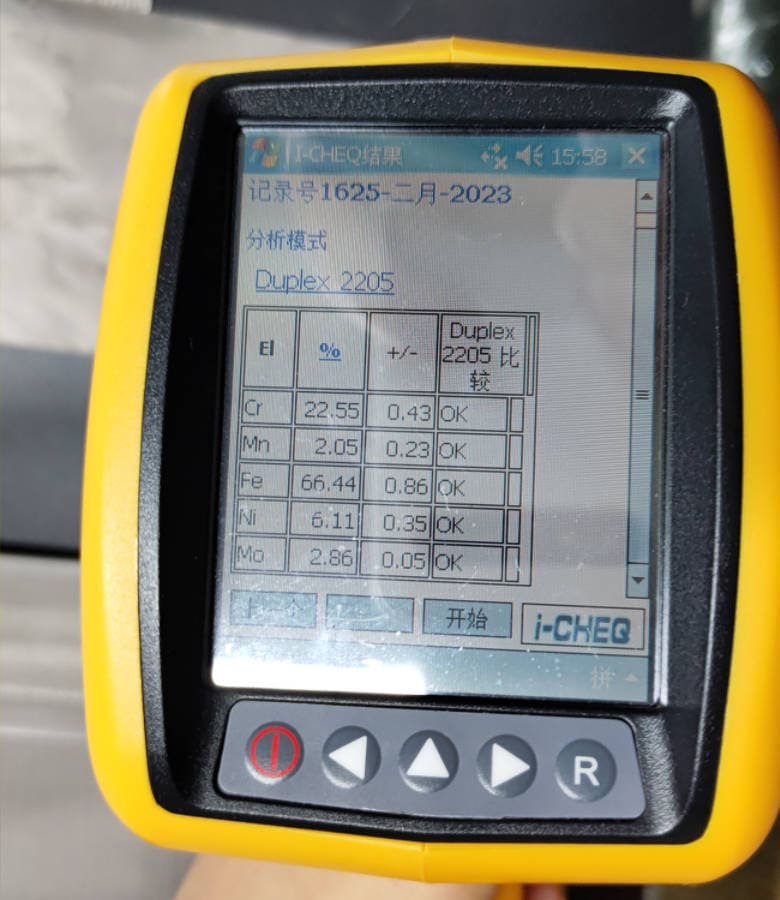

2205 Duplex Stainless Steel Analysis
| Type | UNS S32205 |
|---|---|
| Carbon [C] | 0.03 |
| Manganese [Mn] | 2.00 |
| Phosphorus [P] | 0.030 |
| Sulfur [S] | 0.020 |
| Silicon [Si] | 1.00 |
| Chromium [Cr] | 22.0–23.0 |
| Nickel [Ni] | 4.5-6.5 |
| Molybdenum [Mo] | 3.0-3.5 |
| Nitrogen [N] | 0.14-0.20 |
Stainless Steel

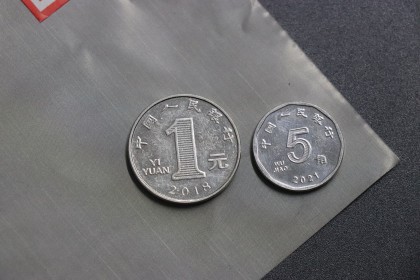

2205 duplex stainless steel wire mesh is a type of wire mesh made from 2205 duplex stainless steel, which is a high-strength and corrosion-resistant alloy. It is composed of equal parts of ferrite and austenite phases, providing it with enhanced mechanical properties compared to conventional stainless steel grades.
It is commonly used in various industrial applications where resistance to corrosion, erosion, and high temperatures is required. It is widely used in chemical processing, oil and gas production, pulp and paper manufacturing, and marine environments.
The wire mesh is made by weaving thin strands of 2205 duplex stainless steel into a mesh pattern using a variety of weaving techniques, such as plain weave, twill weave, and Dutch weave. The wire mesh is available in various sizes and mesh counts, which we can be customized to suit specific applications.
| Type | UNS S32205 |
|---|---|
| Carbon [C] | 0.03 |
| Manganese [Mn] | 2.00 |
| Phosphorus [P] | 0.030 |
| Sulfur [S] | 0.020 |
| Silicon [Si] | 1.00 |
| Chromium [Cr] | 22.0–23.0 |
| Nickel [Ni] | 4.5-6.5 |
| Molybdenum [Mo] | 3.0-3.5 |
| Nitrogen [N] | 0.14-0.20 |

Material, mesh count, wire diameter, width and quantity are enough for a same-day quote. Not sure yet? Describe the application and we will suggest a specification.
